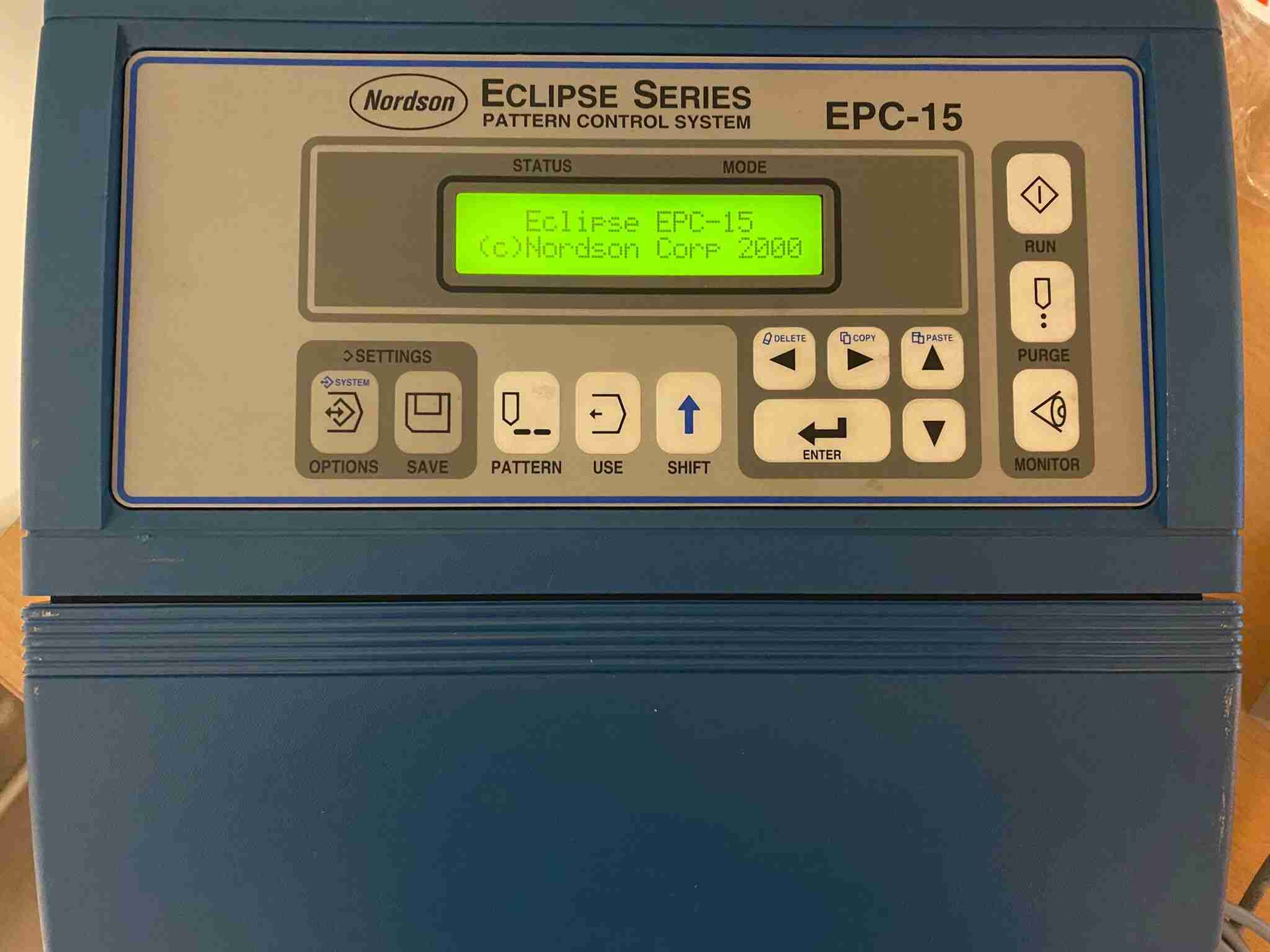

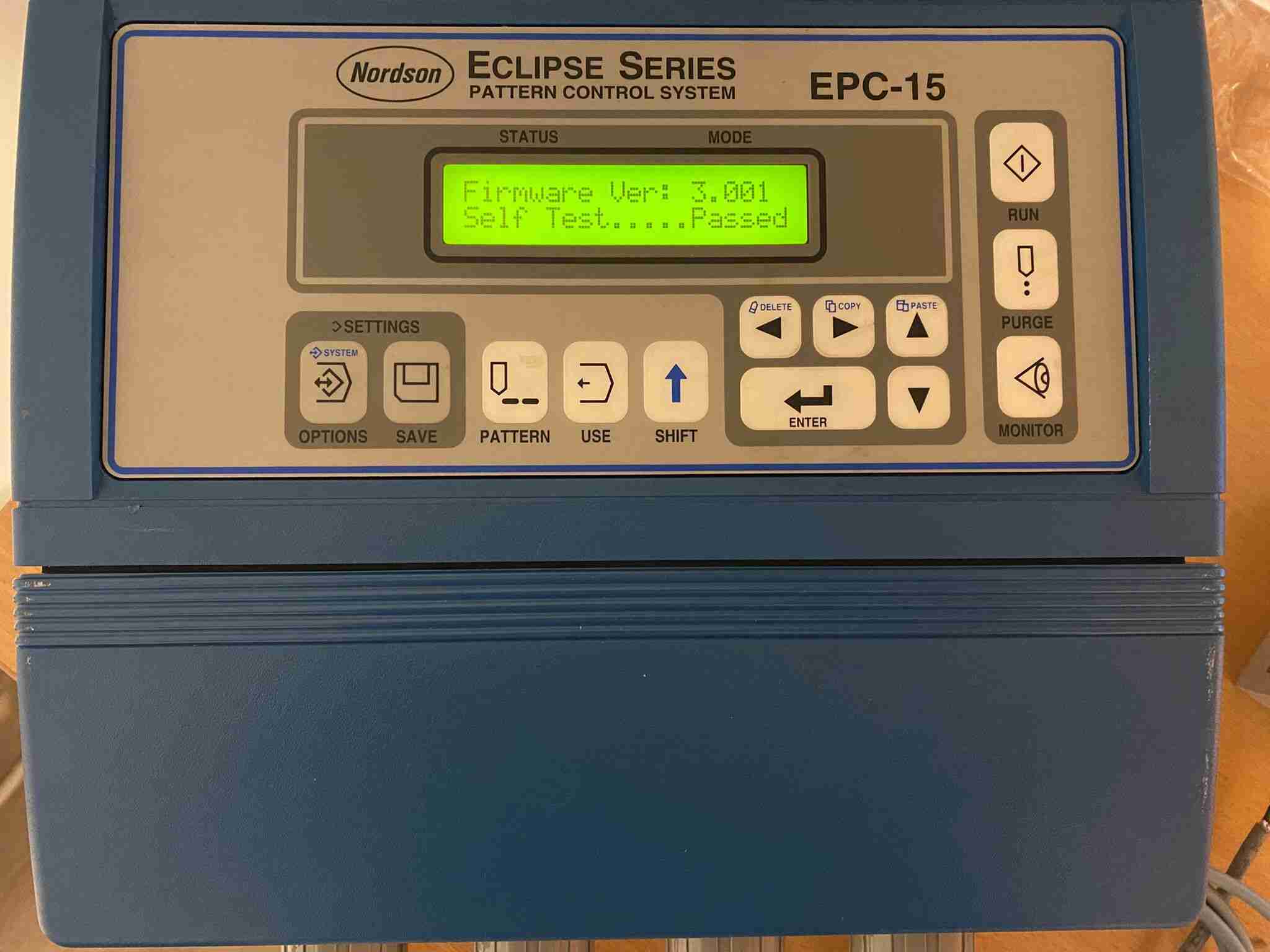

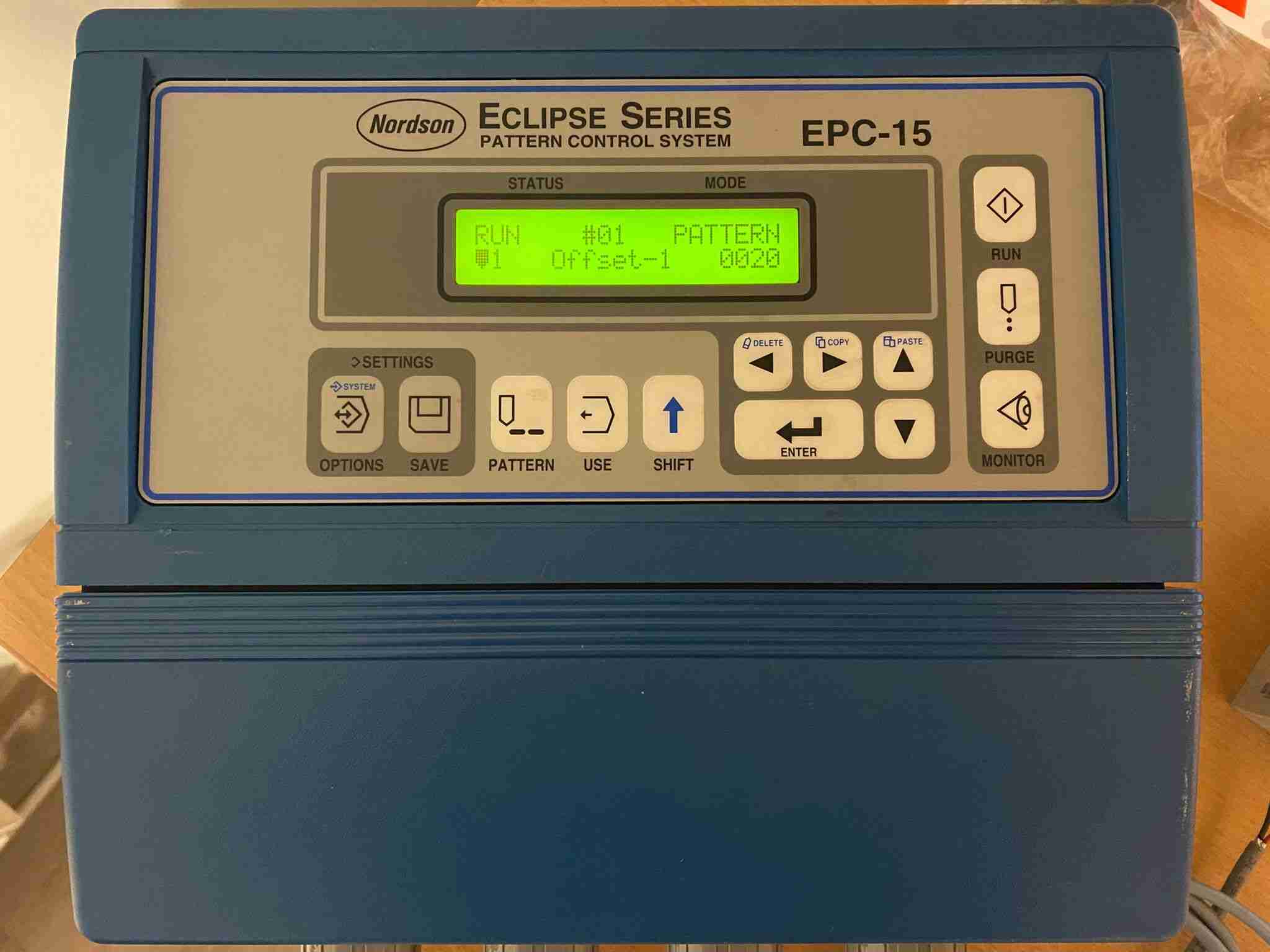

Nordson Eclipse series EPC-15 pattern control. The device can be programmed in Imperial, metric and time.
Power supply: 24VDC
Trigger number: 3
Guns number: 4
Triger type: NPN, currently mounted with 500Hz sensor, but can be changed on request.
Easy to use and it can store up to 25 programs. The EPC-15 is mounted on a DIN rail and can be easily removed from there. We can combine it with other products from our page or we can use it to build a new gluing system for you. Feel free to contact us.
Can be used when high accuracy is needed in glue application.
